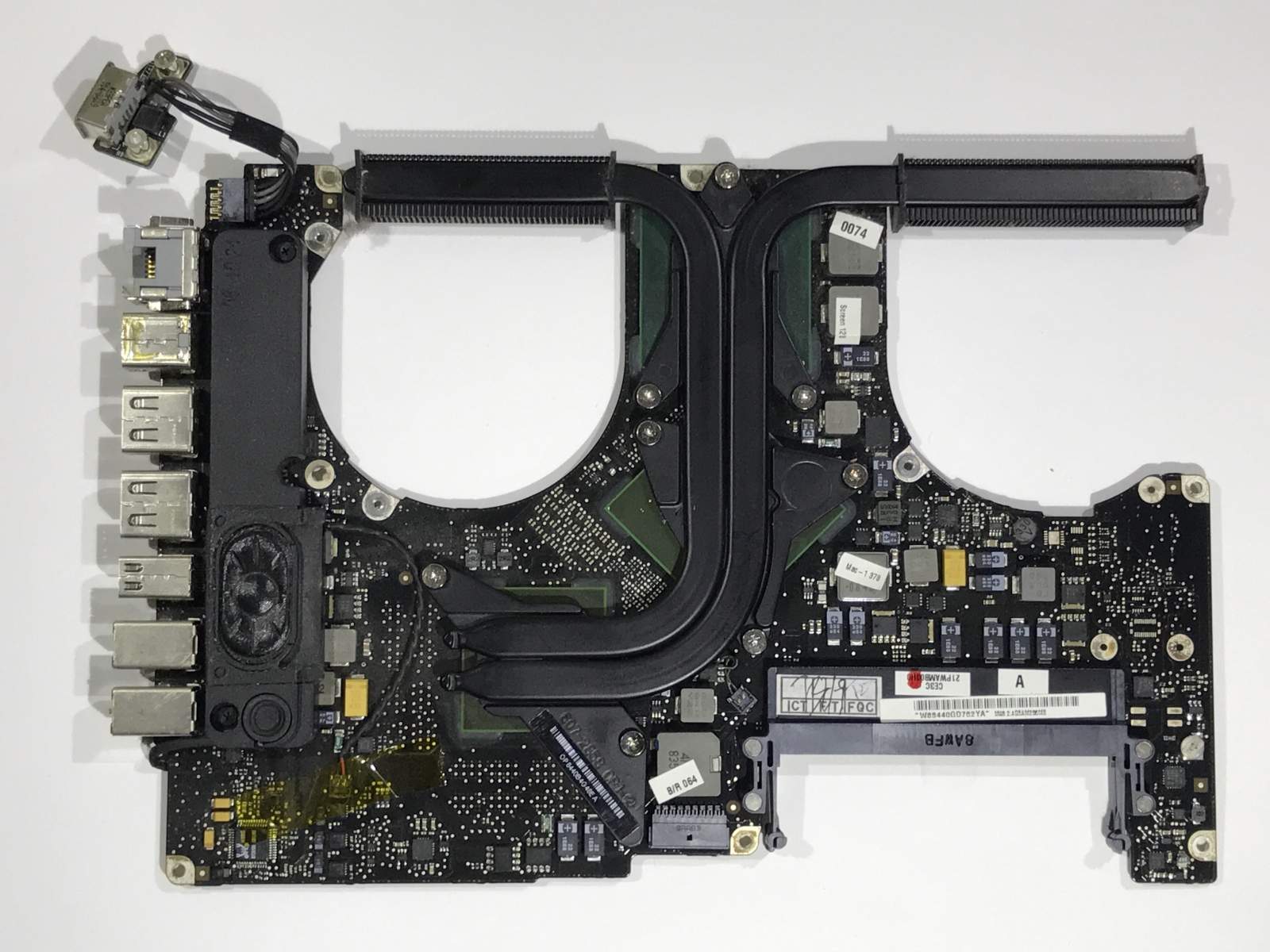

MacBook Pro 15", A1286, Late 2008, MB470-471LL/A, Board#820-2330-A, 820-2532-A

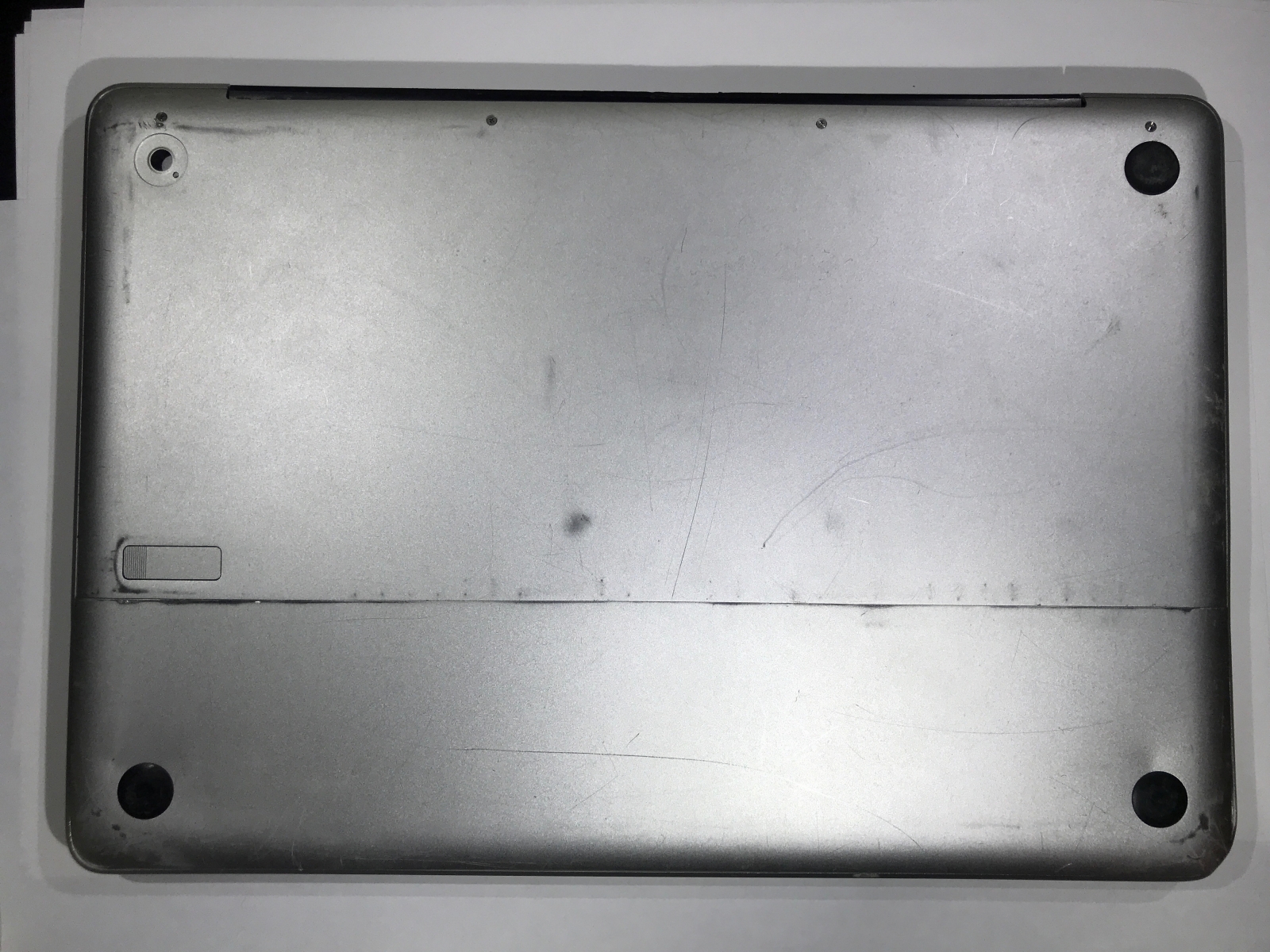

The 2008 15" MacBook Pro (and 2008 13" MacBook) is recognizable by its "trapdoor" battery and hard drive cover (see photo).

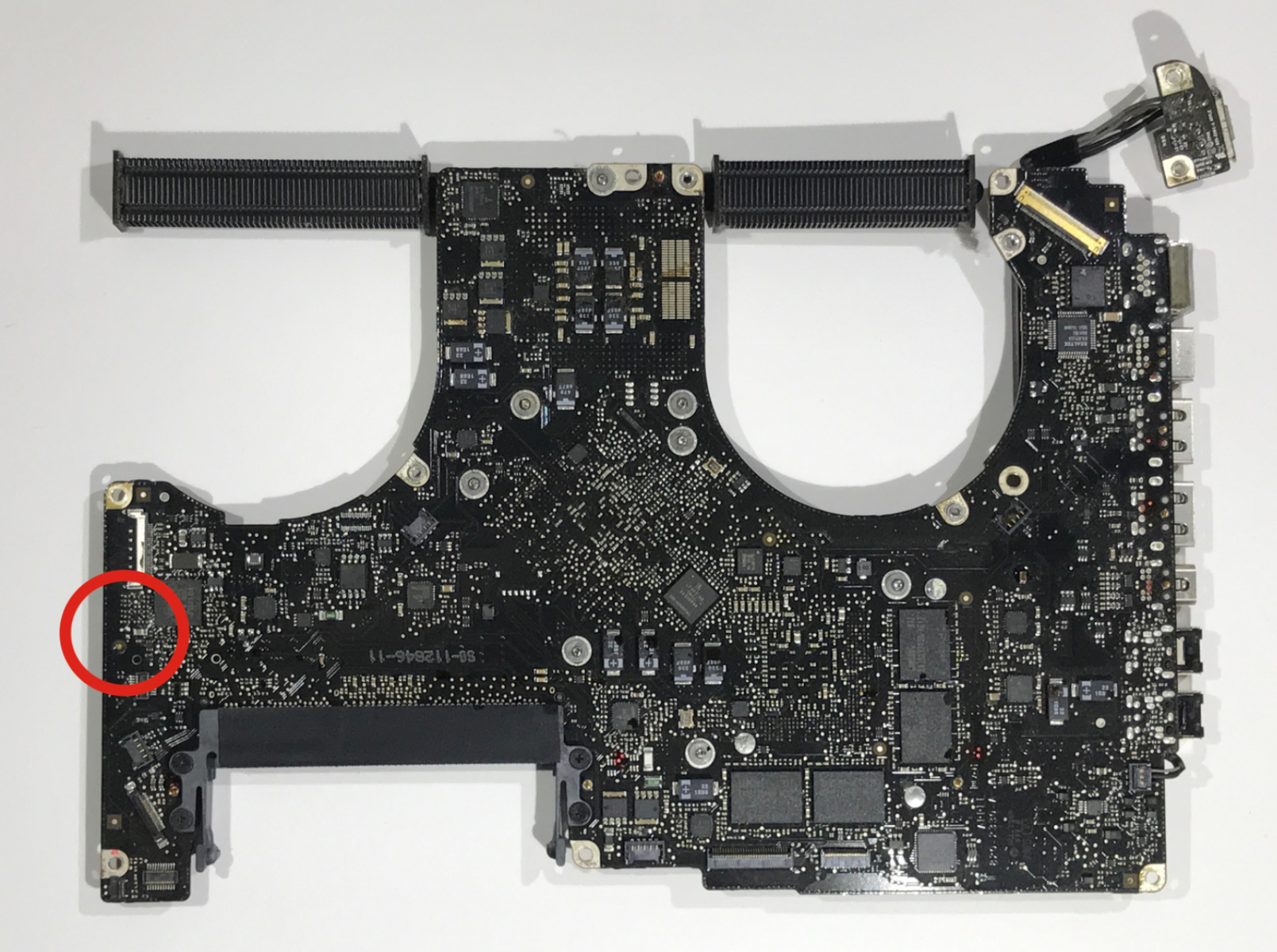

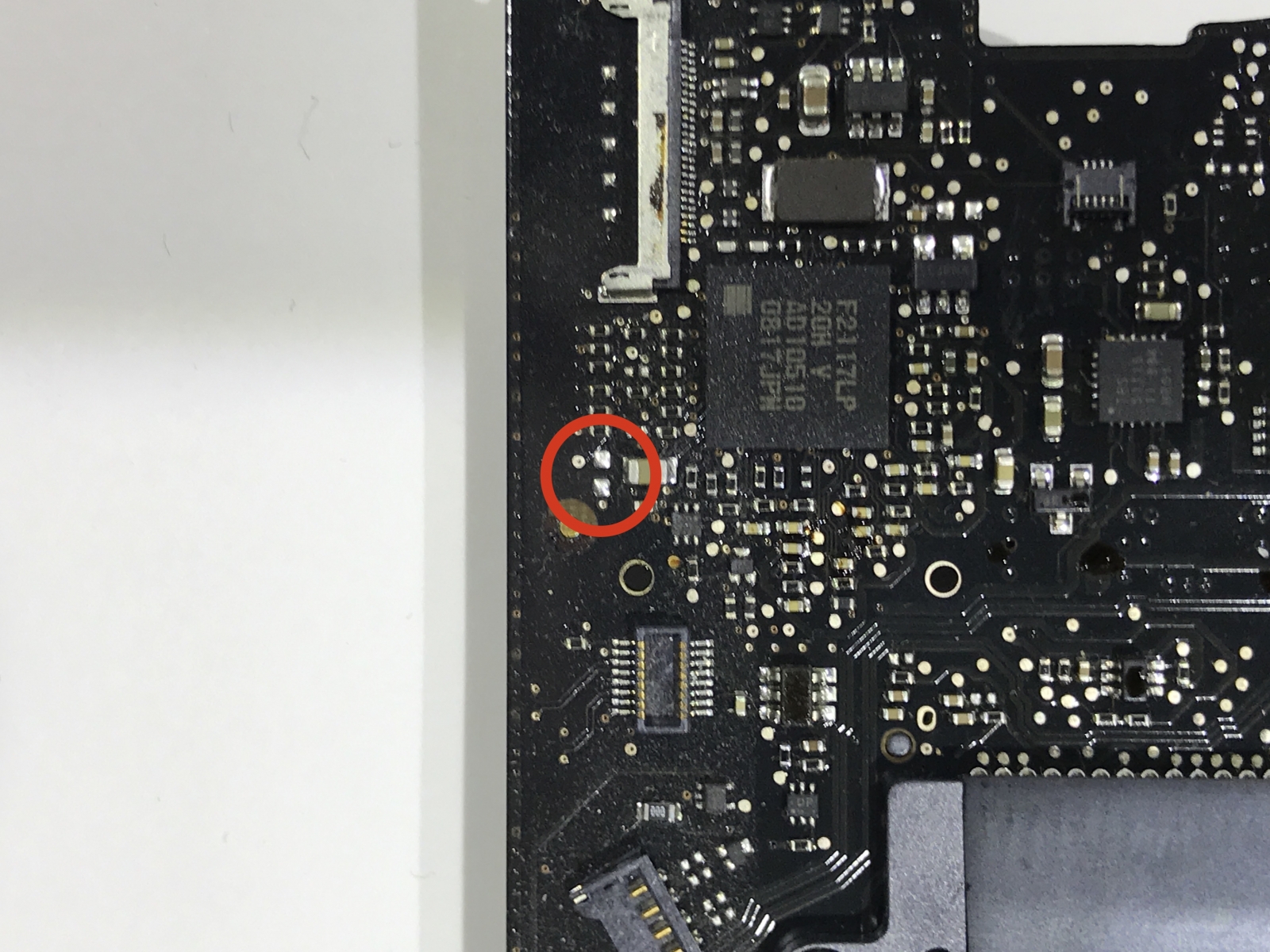

Power-on pads are two tiny metal surfaces on MacBook logic boards.
To find the pads for a particular board, enter the year, screen size, and computer type below, and the relevant logic board with power-on pad locations will appear. Click on the images for details and additional pictures.
Please let me know if you find errors, and if you have images of boards not listed, and I will be happy to include them!
